A-A-52481 Gasket, Rubber, SyntheticThis CID covers a synthetic, rubber gasket used between electric receptacle connectors. Gasket is intended to be used for wall and box mounting.

Pages 1 - 2 - 3 - 4

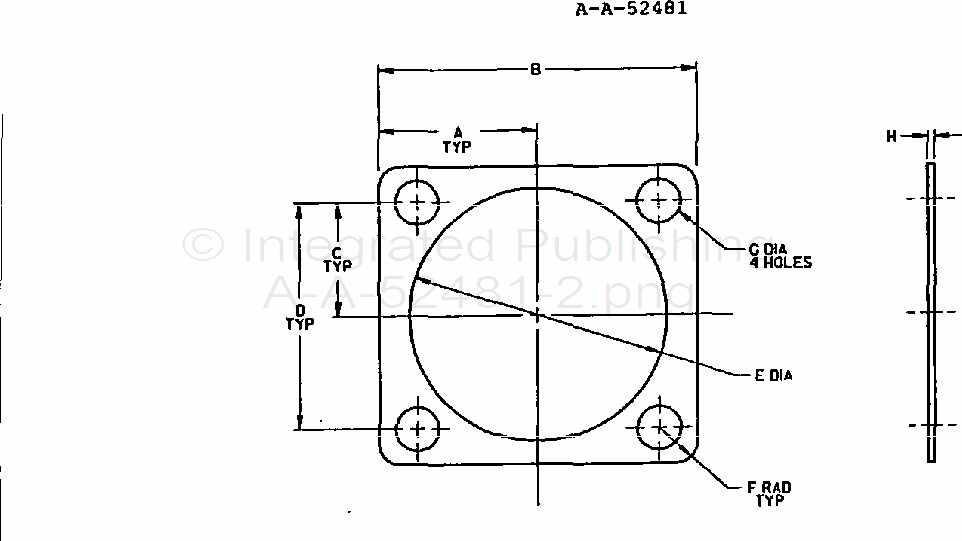

PIN Dash No. A52481

DIM A

DIM B + .016 - .000

DIM C

DIM D

DIA E + .016 - .000

RAD F

DIA G

DIM H + .010

-1

.437

.875

.297

.594

.500

.141

.172

.031

-2

.500

1.000

.359

.719

.625

.141

.172

.031

-3

.547

1.094

.406

.813

.750

.141

.172

.031

-4

.594

1.188

.453

.906

.875

.141

.172

.031

-5

.641

1.281

.484

.969

1.000

.156

.172

.031

-6

.688

1.375

.531

1.063

1.125

.156

.172

.031

-7

.750

1.500

.578

1.156

1.250

.172

.203

.031

-8

.813

1.625

.625

1.250

1.375

.188

.203

.031

-9

.875

1.750

.687

1.375

1.500

.188

.203

.031

-10

1.000

2.000

.781

1.563

1.750

.219

.203

.031

-11

1.344

2.688

1.094

2.188

1.750

.250

.203

.031

-12

1.128

2.250

.875

1.750

2.000

.250

.219

.031

-13

1.250

2.5001

.969

1.938

2.188

.281

.219

.031

-14

1.375

2.750

1.094

2.188

2.473

.281

.219

.031

NOTE: Dimensions are in inches. Unless otherwise specified, tolerances are ± .010 on decimals.
