A-A-52524/2
2.2 Design and construction. The seals (classes 1, 2, and 3 of CID A-A-52524) shall be
designed and constructed in accordance with figure 1.
|
First Dash Number (Size) |
A Shaft Dia (Nom) |
B1 Seal O.D. +0.003 -0.002 |
B2 Housing Bore (Ref) |
C Width +0.015 -0.265 |
|
11 12 |
3.13 3.75 |
4.254 4.759 |
4.249 4.754 |
.969 .969 |
NOTES:
1. The part number consists of the CID designator, the CID number, the specification sheet number and 2 dash numbers (see paragraph 6.3 of A-A-52524). The first dash number indicates the size. The second dash number indicates the class. EXAMPLE: A52524/2-11-3 indicates size number 11 with class 3 sealing member.
2. The PIN dash numbers and the former MS part number dash numbers are the same.
EXAMPLE: A-A-52524/2-11-3 cross references to MS51906-11-3.
3. The CIDSS is not intended to limit construction to features other than as shown herein by dimensions, notation, or referenced documents.
4. Dimensions are in inches.

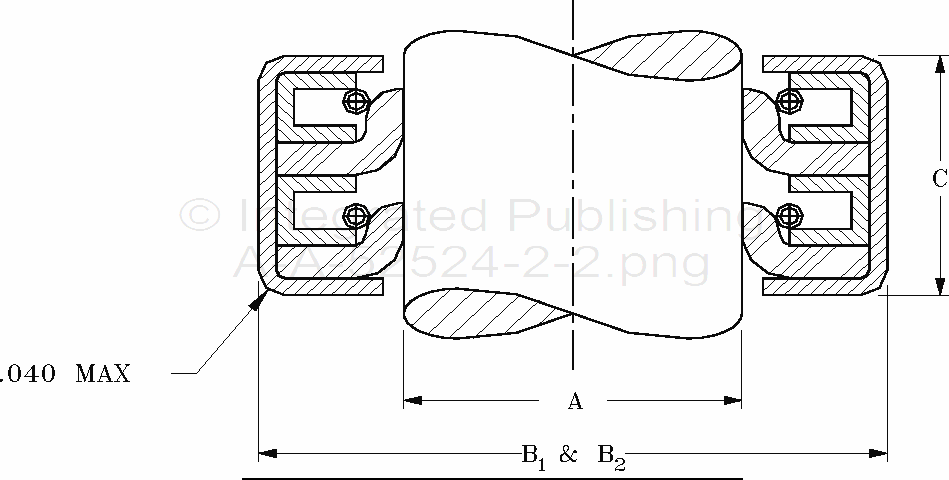

Figure 1. Seal design, construction, and part number.
