Seal, Plain Encased: Dual Sealing Members, Opposed, Spring LoadedThis CIDSS covers seals to be used as rotary shaft seals to retain oil and other fluids.

Pages 1 - 2 - 3




A-A-52524/3



2.2 Design and construction. The seals (classes 1, 2, and 3 of CID A-A-52524) shall be designed and constructed in accordance with figure 1.





First

Dash

Number

(Size)

A

Shaft

Dia

(Nom)

B1

Seal

O.D.

(1)

B2

Housing

Bore

(Ref)



C

Width

+ .020

11

12

1.25

4.13

2.004

5.255

2.000

5.250

.750

.969

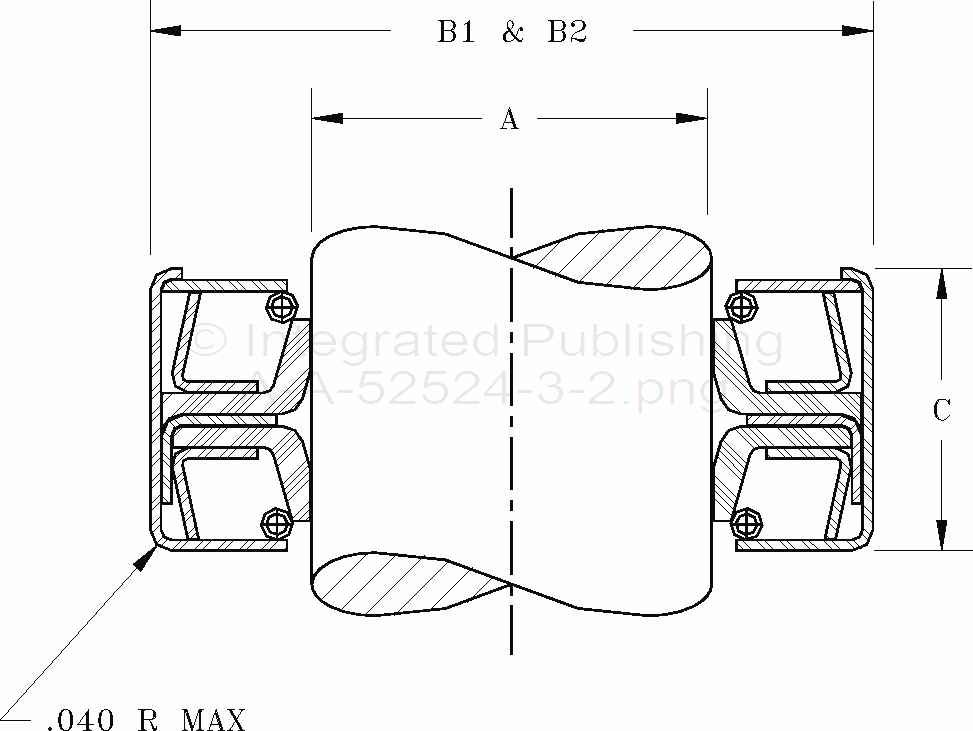

Figure 1. Seal design, construction, and part number.
