A-A-52524/4
2.2 Design and construction. The seals (classes 1, 2, and 3 of CID A-A-52524) shall be designed and constructed in accordance with figure 1.
|
First Dash Number (Size) |
A Shaft Dia (Nom) |
B1 Seal O.D. (1) |
B2 Housing Bore (Ref) |
C Width + .020 |
|
11 12 13 14 15 |
1.63 2.00 2.00 2.06 2.44 |
4.312 4.375 4.500 4.750 5.750 |
4.307 4.370 4.495 4.745 4.745 |
.469 .656 .781 .469 .750 |

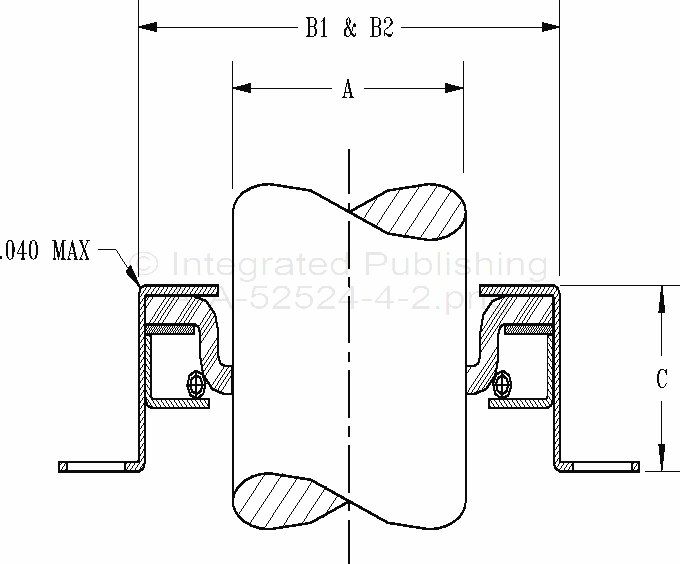

Figure 1. Seal design, construction, and part number.
