Seal, Plain Encased: Single Sealing Member, Spring Loaded, Shouldered CaseThis CIDSS covers seals to be used as rotary shaft seals to retain oil and other fluids.

Pages 1 - 2 - 3

A-A-52524/5

2.1.3 Class 3 sealing member material. Class 3 sealing members shall be made of oil resistant elastomer suitable for extreme operating temperature service (see A-A-52524).

2.2 Design and construction. The seals (classes 1, 2, and 3 of CID A-A-52524) shall be designed and constructed in accordance with figure 1.

First

Dash

Number

(Size)

Shaft

Dia

(Nom)

Seal

O.D.

(1)

B₂

Housing

Bore

(Ref)

Width

+ .020

1.44

1.56

2.25

3.00

3.13

3.19

4.00

2.535

3.165

3.443

4.444

4.567

4.630

5.755

2.531

3.160

3.438

4.439

4.562

4.625

5.750

.625

.594

.672

.719

1.203

.750

.875

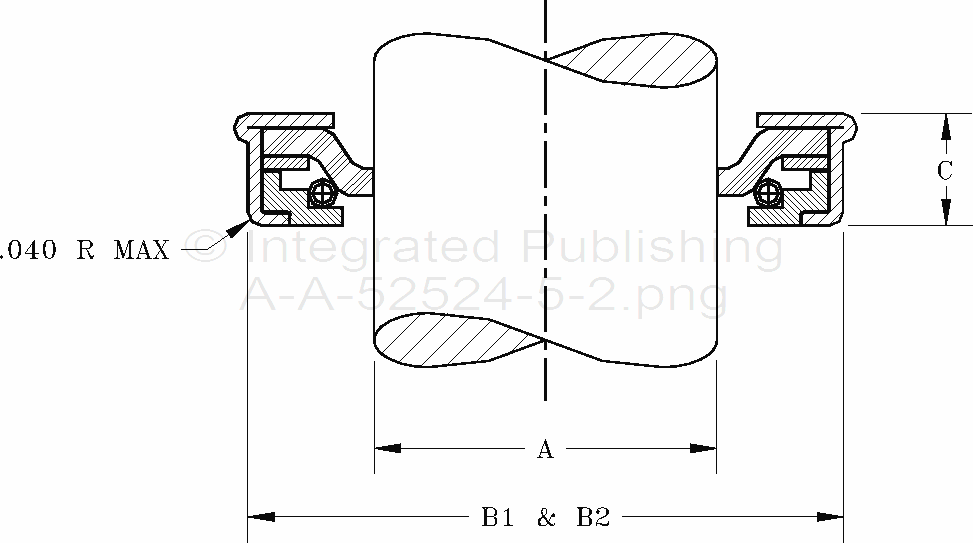

Figure 1. Seal design, construction, and part number.
