A-A-52524/6
2.2 Design and construction. The seals (classes 1, 2, and 3 of CID A-A-52524) shall be designed and constructed in accordance with figure 1.
|
First Dash Number (Size) |
A Shaft Dia + .002 |
B Housing Bore (Ref) |
C Width + .020 |
|
11 12 13 14 15 |
1.375 1.375 2.121 3.244 3.432 |
2.375 2.437 3.250 4.500 4.624 |
.500 .500 .469 .563 .484 |

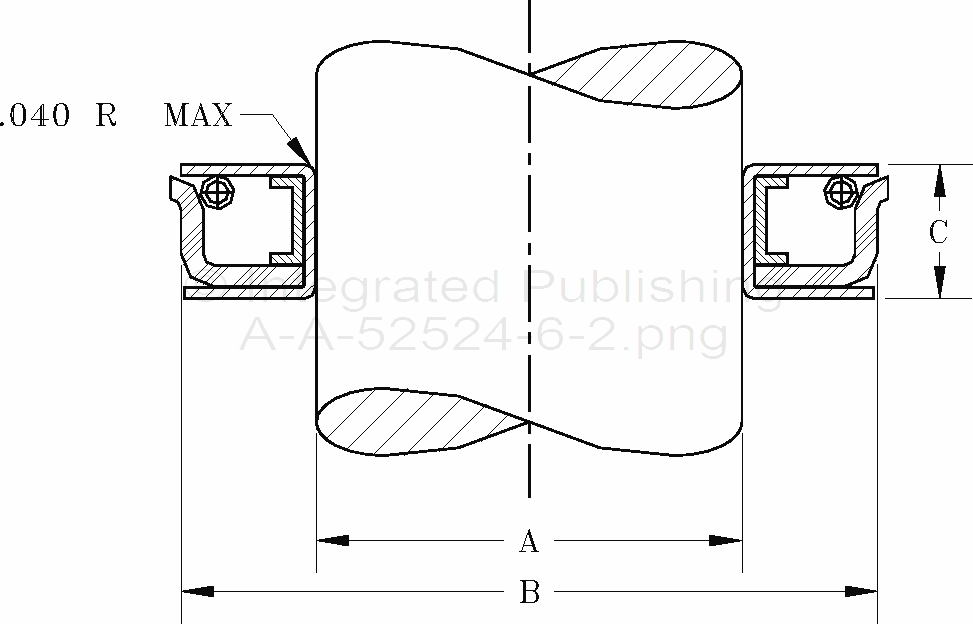

Figure 1. Seal design, construction, and part number.
