2.2 Design and construction. The seals (classes 1, 2, and 3 of CID A-A-52524) shall be designed and constructed in accordance with figure 1.
|
First Dash Number (Size) |
A Shaft Dia (Nom) |
B1 Seal O.D. (1) |
B2 Housing Bore (Ref) |
C Width + .020 |
|
11 12 13 14 |
.63 1.50 1.56 1.63 |
1.254 2.510 2.508 2.883 |
1.250 2.506 2.504 2.879 |
.531 .703 .953 .703 |
|
15 16 17 18 19 |
2.00 3.50 3.50 5.00 6.19 |
3.001 4.505 4.630 6.258 7.258 |
2.997 4.500 4.625 6.252 7.252 |
.719 .828 .656 .734 .734 |

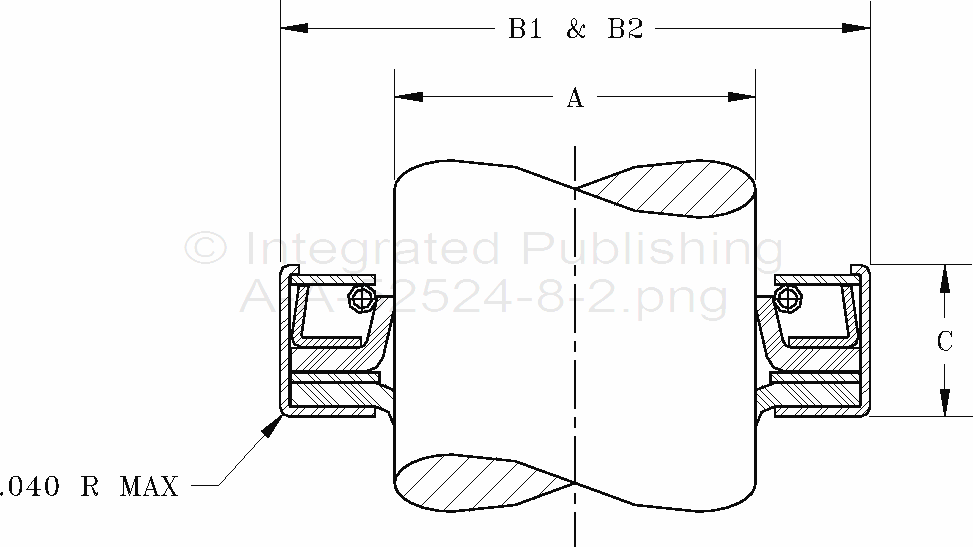

Figure 1. Seal design, construction, and part number.
