AN3067 REV. 4
Ø.130 ±.005
30°
.094
.344
9°
Ø.438
±.010
Ø.656
Ø.080
72° TYP
±.008
6 HOLES
Ø.375
Ø.250
KNIFE CUT
.046
6 REQUIRED

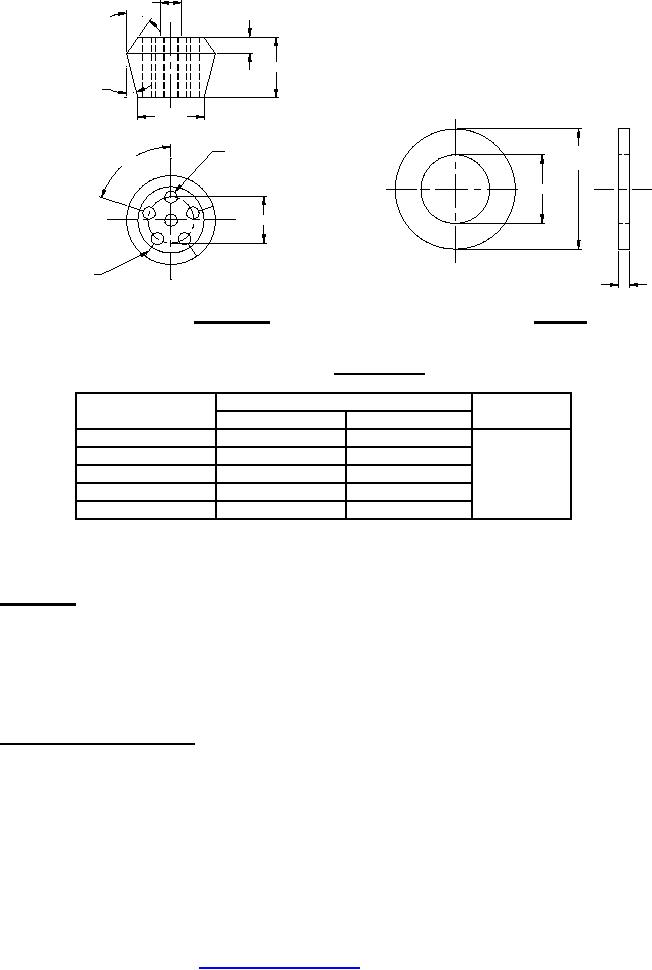

FIGURE 5. 6 Hole seal.
FIGURE 6. Washer.
TABLE I. Part numbers.
SEALS
AN ASSEMBLY
WASHER
PART NO.
PART NO.
HOLES
AN3067-2
AN3067S2
2
AN3067-3
AN3067S3
3
AN3067-4
AN3067S4
4
AN3067W3
AN3067-5
AN3067S5
5
AN3067-6
AN3067S6
6
NOTES:
1. MATERIAL: Seal, synthetic rubber, soft.
Washer, insulation, plastic, laminated thermosetting, cotton-fabric-base, phenolic-resin (FBG),
specification MIL-I-24768/14.
2. Dimension in inches. Unless otherwise specified, tolerances: Dimensions ±.016, Angles ±1°.
3. This assembly is for use with conduit boss, SAE AS10051. Use nut AN3054-6.
4. Changes from previous issue. Marginal notations are not used in this revision to identify changes with respect
to the previous issue due to the extent of changes.
Custodians:
Preparing activity:
Air Force - 99
DLA IS
(Project 5330-2008-012)
Review activity:
Air Force - 71
NOTE: The activities listed above were interested in this document as of the date of this document. Since
organizations and responsibilities can change, you should verify the currency of the information above using
the ASSIST Online database at https://assist.daps.dla.mil
2
