A-A-52524/7A
2.2 Design and construction. The seals (classes 1, 2, and 3 of CID A-A-52524) shall be designed and constructed in accordance with figure 1.
|
First Dash Number (Size) |
A Shaft Dia (Non) |
B1 Seal O.D. (1) |
B2 Housing Bore (Ref) |
C Width +0.015 -0.020 |
|
First Dash Number (Size) |
A Shaft Dia (Non) |
B1 Seal O.D. (1) |
B2 Housing Bore (Ref) |
C Width +0.020 |
|
31 32 33 34 |
0.75 0.81 1.38 1.50 |
1.254 1.379 2.441 2.129 |
1.250 1.375 2.437 2.125 |
0.531 0.531 0.594 0.563 |
|
43 44 45 46 |
2.50 2.50 2.75 2.88 |
3.505 3.548 3.880 3.756 |
3.500 3.543 3.875 3.751 |
0.625 0.625 0.625 0.641 |
|
35 36 37 38 |
1.50 1.75 1.88 1.88 |
2.506 2.504 2.754 2.879 |
2.502 2.500 2.750 2.875 |
0.656 0.625 0.656 0.656 |
|
47 48 49 50 |
2.94 2.94 2.94 3.00 |
3.880 4.008 4.254 4.008 |
3.875 4.003 4.249 4.003 |
0.688 0.625 0.750 0.625 |
|
39 40 41 42 |
1.94 2.25 2.25 2.38 |
3.005 3.355 3.628 3.355 |
3.000 3.350 3.623 3.350 |
0.625 0.594 0.609 0.703 |
|
51 52 53 54 |
3.00 3.25 4.00 5.00 |
4.254 4.505 5.004 6.255 |
4.249 4.500 4.999 6.249 |
0.656 0.594 0.594 0.875 |

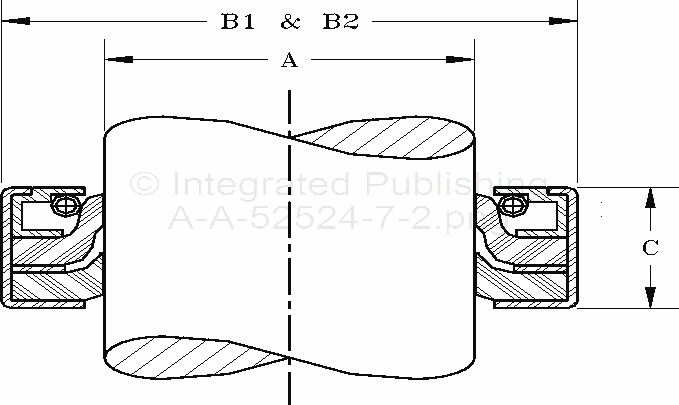

FIGURE 1. Seal design, construction, and part number.
