MIL-DTL-5516D
For "V" Ring packing AN6225
W
R
B
B1
Dash no.
Inch
Inch
Inch
Inch
1 to 7 inclusive
.1875
.0625
.093
.073
8 to 24 inclusive
.2500
.0625
.093
.073
25 to 35 inclusive
.3125
.1093
.150
.130
36 to 47 inclusive
.3750
.1250
.166
.146
48 to 55 inclusive
.4375
.1563
.207
.187
56 to 80 inclusive
.5000
.1563
.207
.187
Examination characteristics with applicable packing in templates.
1. Smallest permissible stack height indicated when surfaces X and Z of low tolerance
templates come together and angle surfaces of both templates and packing ring are in contact
within allowable angularity limits of AN6225.
2. When angle surfaces of both template and packing ring are in contact, but surfaces X
and Z are apart, revert to high limit tolerance template.
3. Highest permissible stack height indicated when surfaces X and Z of high tolerance
templates come together and angle surfaces of both templates and packing ring are in contact
within allowable angularity limits of AN6225.
NOTE: Care should be taken to not injure sealing lips of packing with templates.
Dimensions in inches. Template tolerances, unless otherwise specified, ±.001, angles ±1/2°.

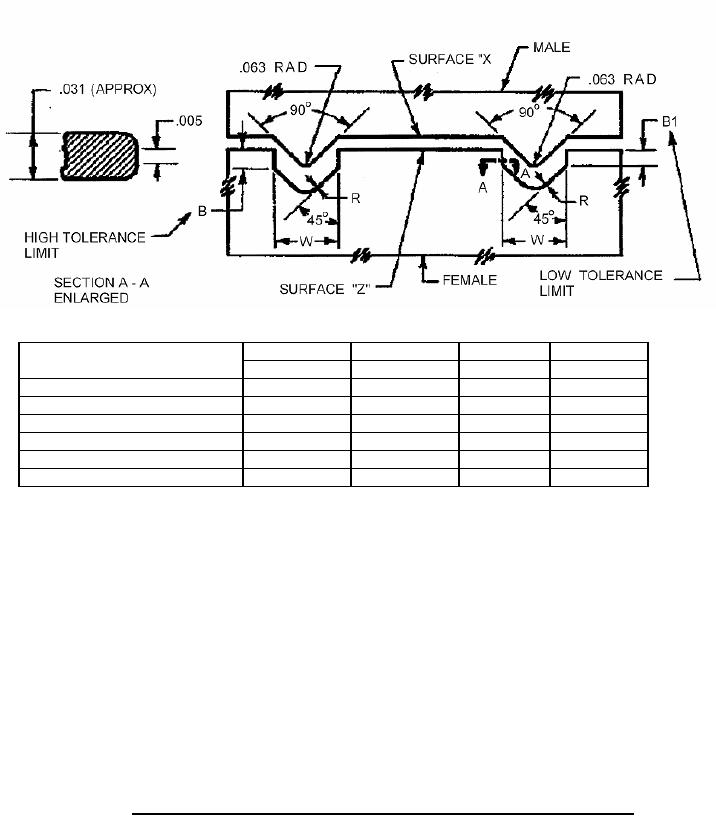

Figure 1. Templates for checking cross section of V-ring and stack height dimensions.
