MIL-DTL-5516 Packing, Preformed, Petroleum Hydraulic Fluid Resistant, 160 Degrees F \(71 Degrees C\)This specification covers preformed packings for use where resistance to hydraulic fluid conforming to specification MIL-PRF-5606 is required at temperatures from -65 Degrees to 160 Degrees F \(-54 Degrees to 71 Degrees C\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21


NOTES:

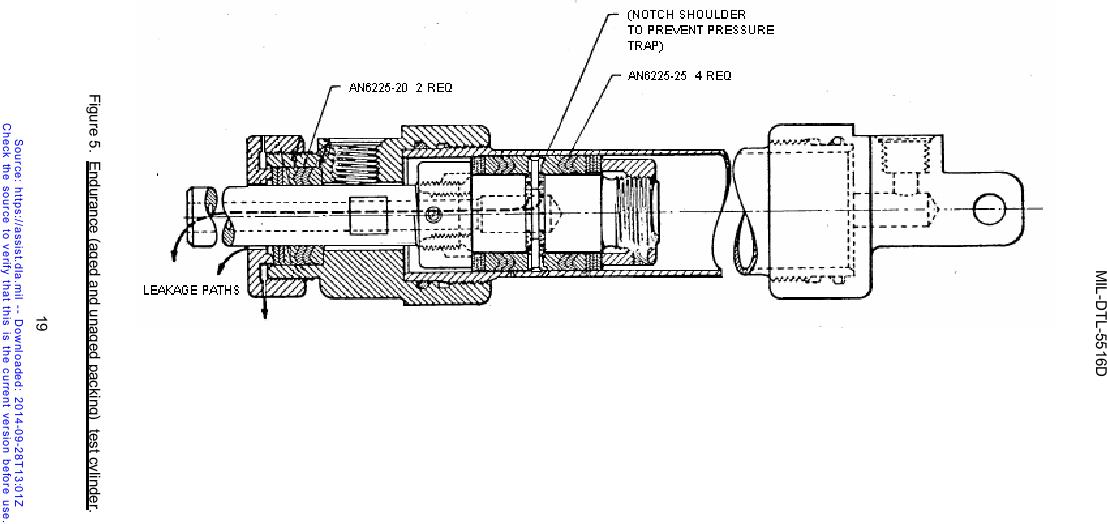

CYLINDER IN ACCORDANCE WITH SPECIFICATIONS MIL-PRF-5503 AND MIL-G-5514.
CYLINDER BARREL
MATERIAL: STEEL ­ SAE-AMS-S-6758 (4130).
HEAT TREAT 125,000 P.S.I. TENSILE. STRENGTH.
BORE GROUND AND HONED TO 5 TO 10 MICRO-INCH (RHR).
FINISH: CHROME PLATING MAY BE USED.
WALL THICKNESS SHALL BE SUCH AS TO BURST AT 6,000 P.S.I MAX., INTERNAL PRESSURE.
ROD FINISH: GRIND AND LAP TO 5 TO 10 MICRO-INCH (RHR). - CHROME PLATE.
ALL RETAILS OF CYLINDER ASSEMBLY AND DETAIL PARTS NOT SHOWN HEREON SEE FIG. 3.
