1. V-ring shall slide on mandrel with no light visible around I.D.
2. V-ring shall be seated into female adapter with no distortion of lips (lack of concentricity between V-ring and female
adapter shall not be apparent.)
3. With both male and female adapters pressed against V-ring, by light hand pressure, on the mandrel, a positive
projection of the lip shall be apparent above the OD of the male and female adapters as shown by a straight edge.
This shall be true over entire 360° of periphery.

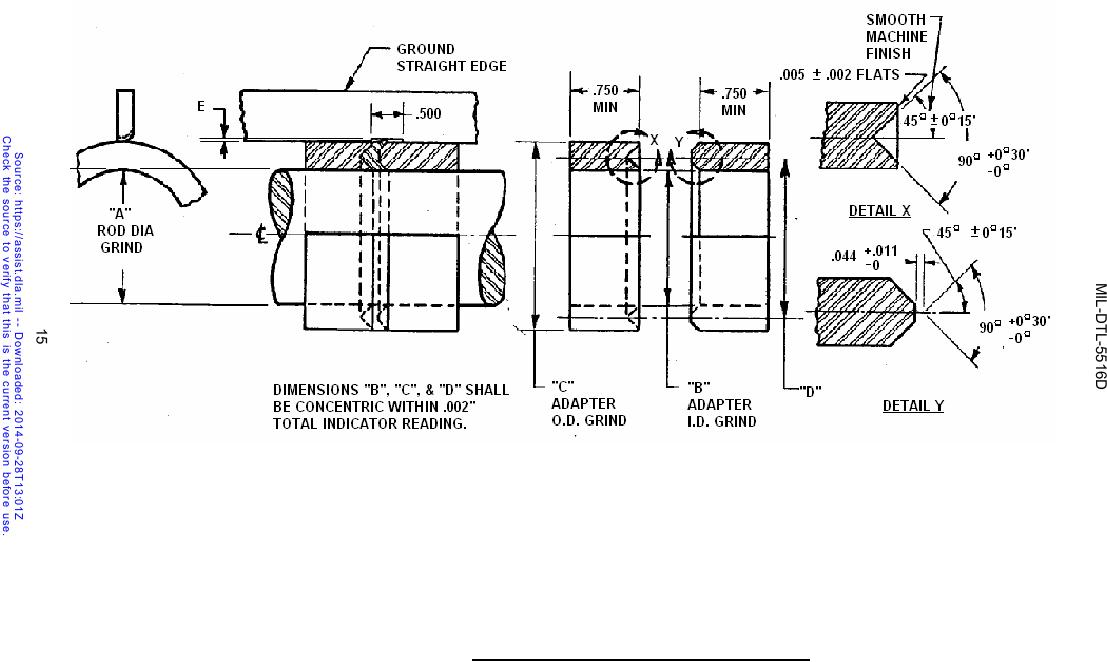

Figure 2 (sheet 1 of 2). Tools and method for inspection of V-ring diameter.
