MIL-DTL-81716 Packing, Preformed, Straight Thread Tube Fitting Boss, Type Ii Hydraulic \(-65 Degrees F To +275 Degrees F \)This specification covers one type of elastomeric straight threaded tube fitting boss packings for use in 3000 psi \(20.68 MPa\) hydraulic systems using MIL-PRF-5606 fluid throughout a temperature range of -65 Degrees F to +275 Degrees F \(-54 Degrees C to +135 Degrees C\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19


MIL-DTL-81716A
FINISH: PLATE WITH COPPER THEN HARD CHROME ALL OVER.
DIMENSIONS IN INCHES

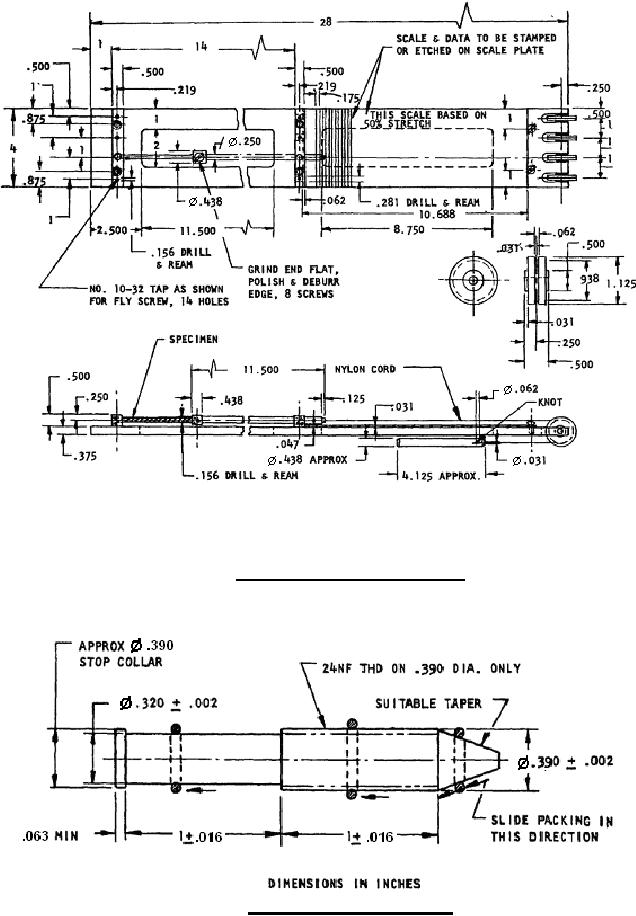

Figure 1. Temperature retraction apparatus.
Figure 2. Installation stretch test mandrel.
